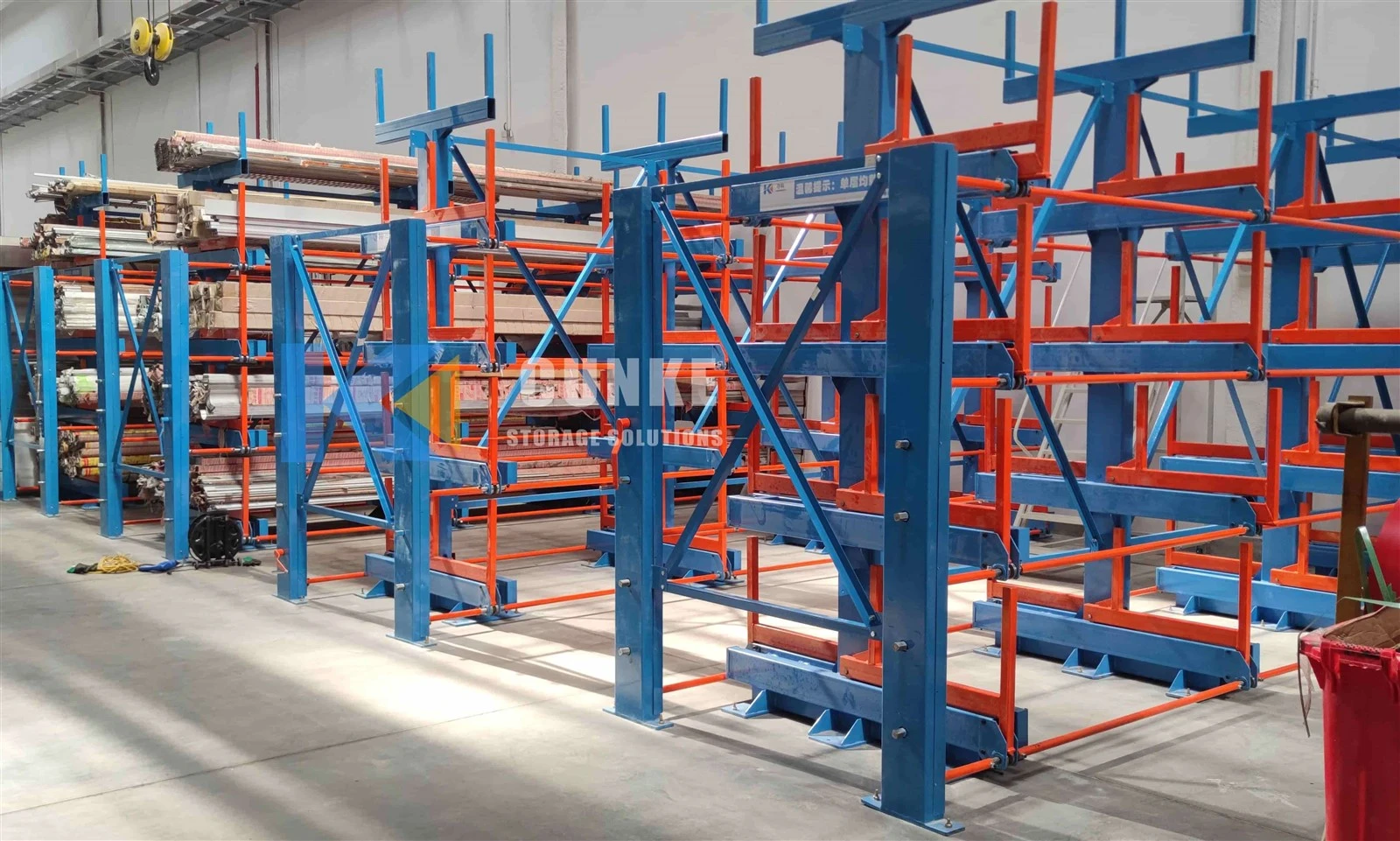

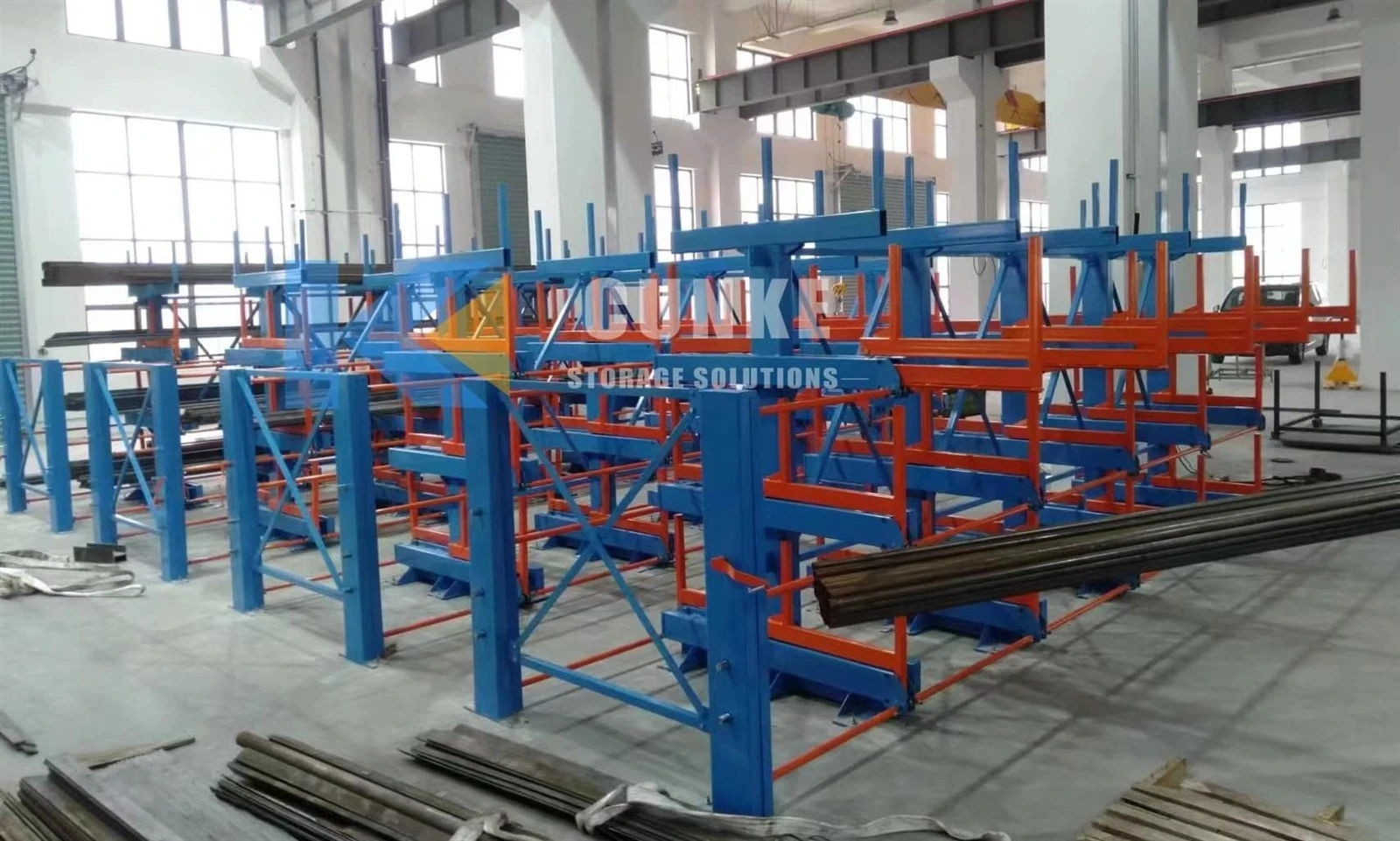

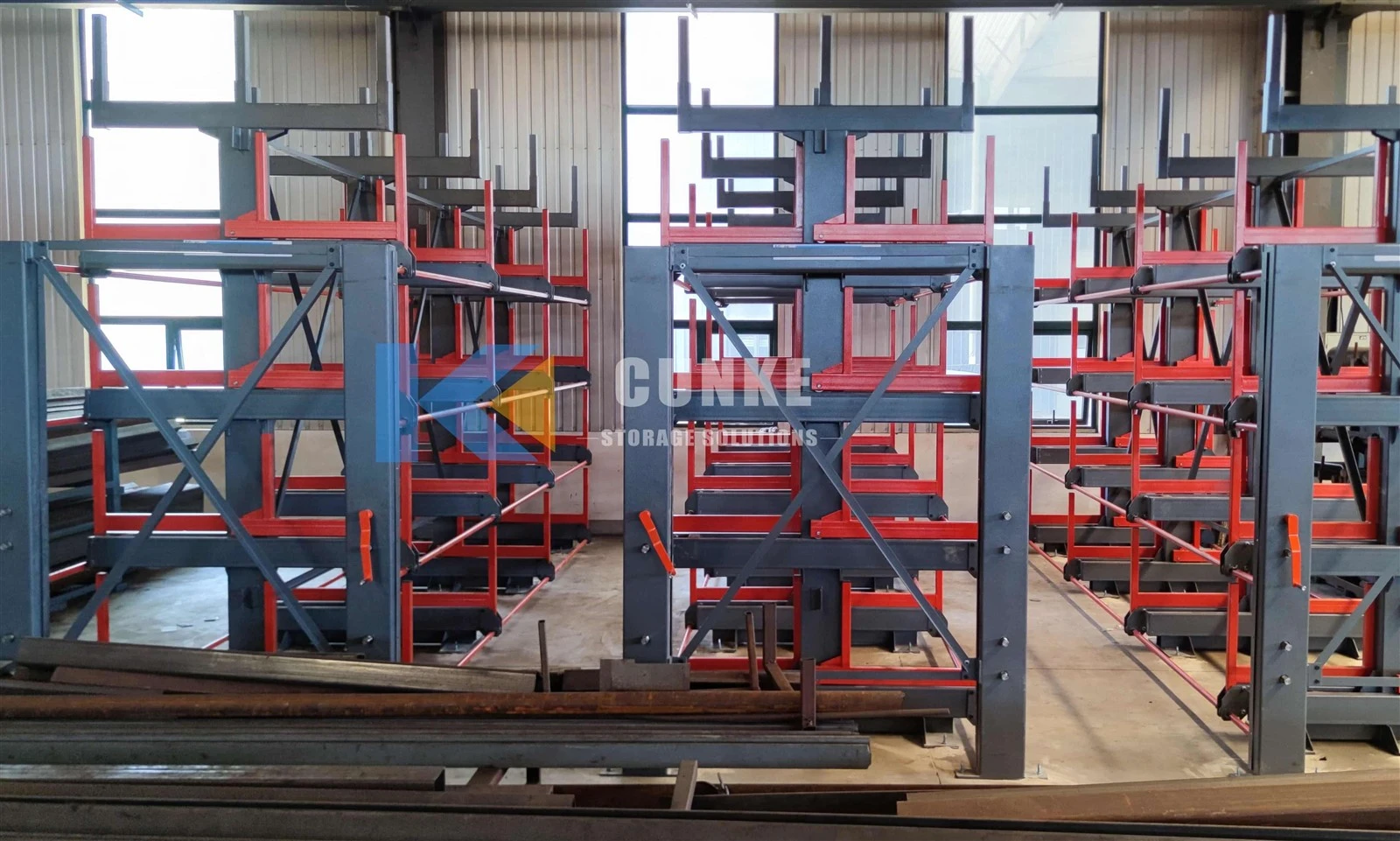

Roll-Out Pipe Rack For Overhead Crane Access

Storing long pipes, tubes, aluminum profiles, steel bars, and structural sections on the floor wastes valuable space and increases handling risks. CK's Roll-Out Pipe Rack for Overhead Crane Access is designed to organize long materials while providing direct access for overhead cranes. Each cantilever arm extends smoothly, allowing operators to lift materials vertically without obstruction, improving both safety and productivity.

Whether you are operating a steel service center, aluminum extrusion plant, or fabrication workshop, this storage solution maximizes storage density while minimizing manual handling.

Traditional cantilever racks often require forklifts to access materials, which can be inefficient when storing heavy or long products. Our roll-out system eliminates this problem by allowing every storage level to slide outward independently.

• Individual roll-out cantilever arms
• Increased workshop storage capacity
• Reduced forklift traffic
• Faster material picking
• Improved operator safety
• Suitable for heavy-duty long materials
• Customizable dimensions and capacities

Instead of placing long materials on the workshop floor, the roll-out pipe rack stores materials vertically in multiple levels.

Benefits include:

• Better workshop organization
• More available floor space
• Improved inventory visibility
• Faster loading and unloading
• Easier material identification

The modular design also allows multiple rack units to be installed in rows, maximizing workshop utilization.

Every CK roll-out pipe rack is manufactured from high-strength structural steel.

Features include:

• Reinforced cantilever arms

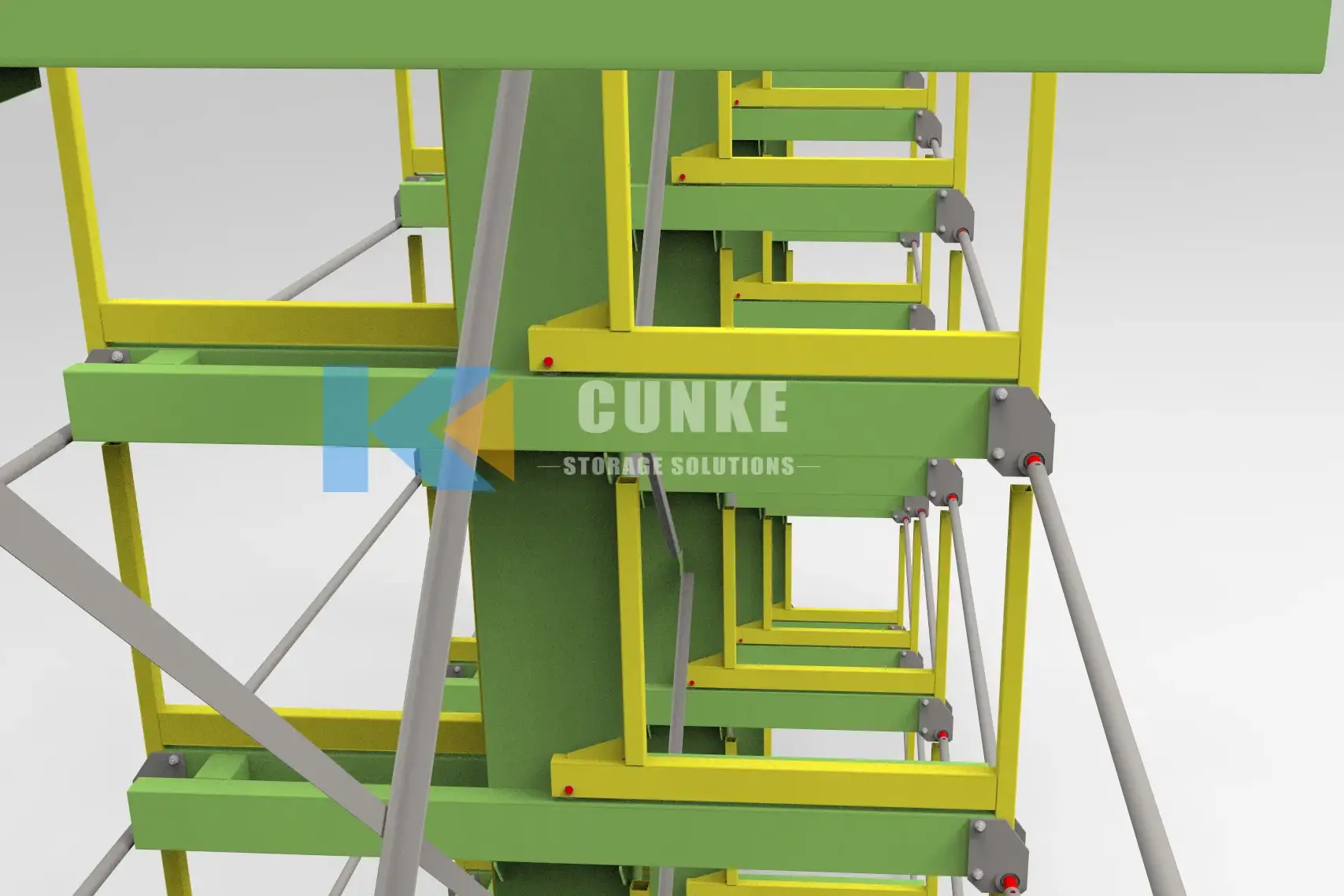

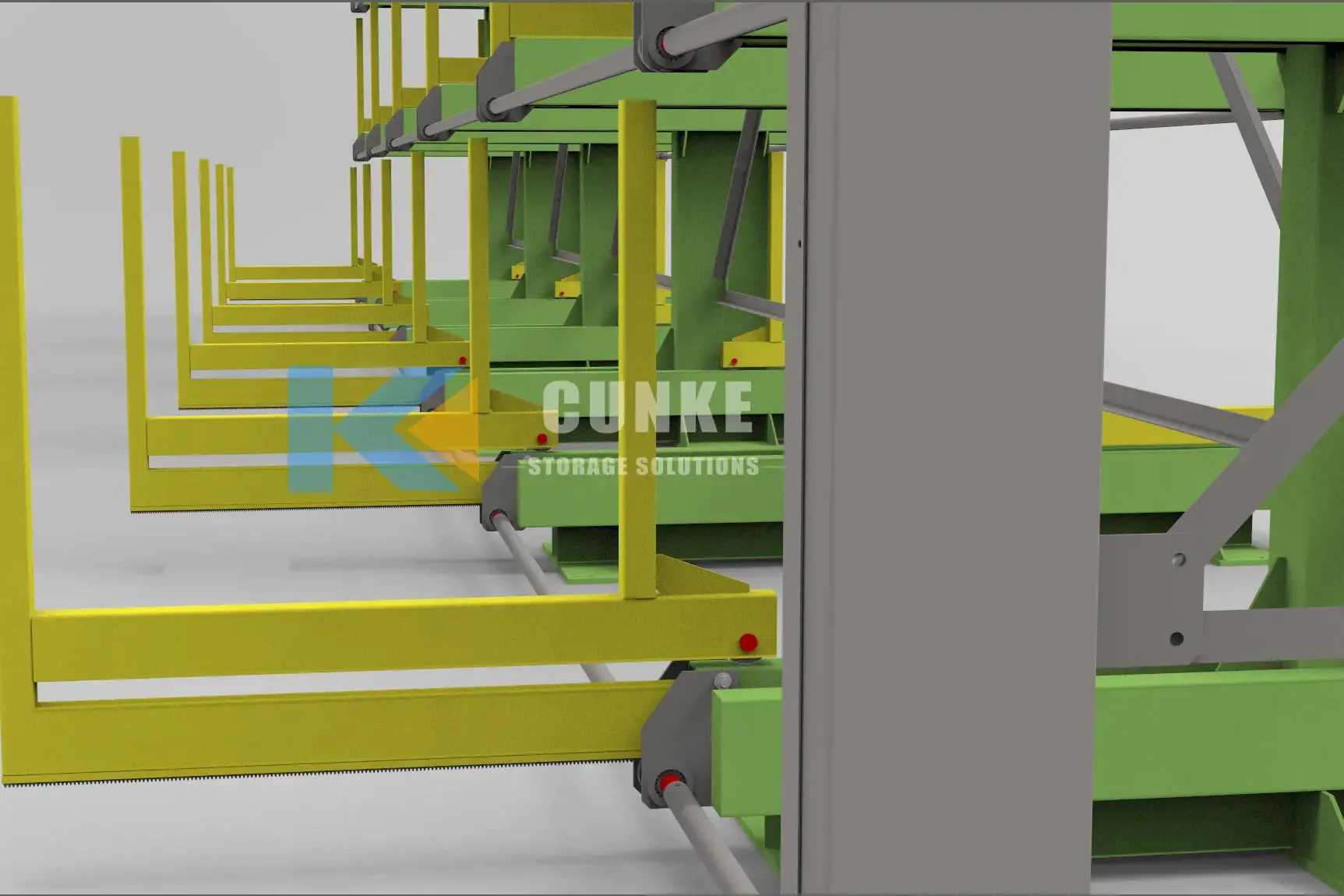

• Heavy-duty roller mechanism
• Stable welded frame
• Mechanical locking system
• Smooth manual operation
• Durable powder-coated finish

The robust construction ensures reliable performance under continuous industrial use.

No two factories store materials in exactly the same way.

CK offers fully customized solutions based on:

• Material length
• Material weight
• Bundle dimensions
• Crane lifting method
• Available workshop space
• Number of storage levels
• Future expansion requirements

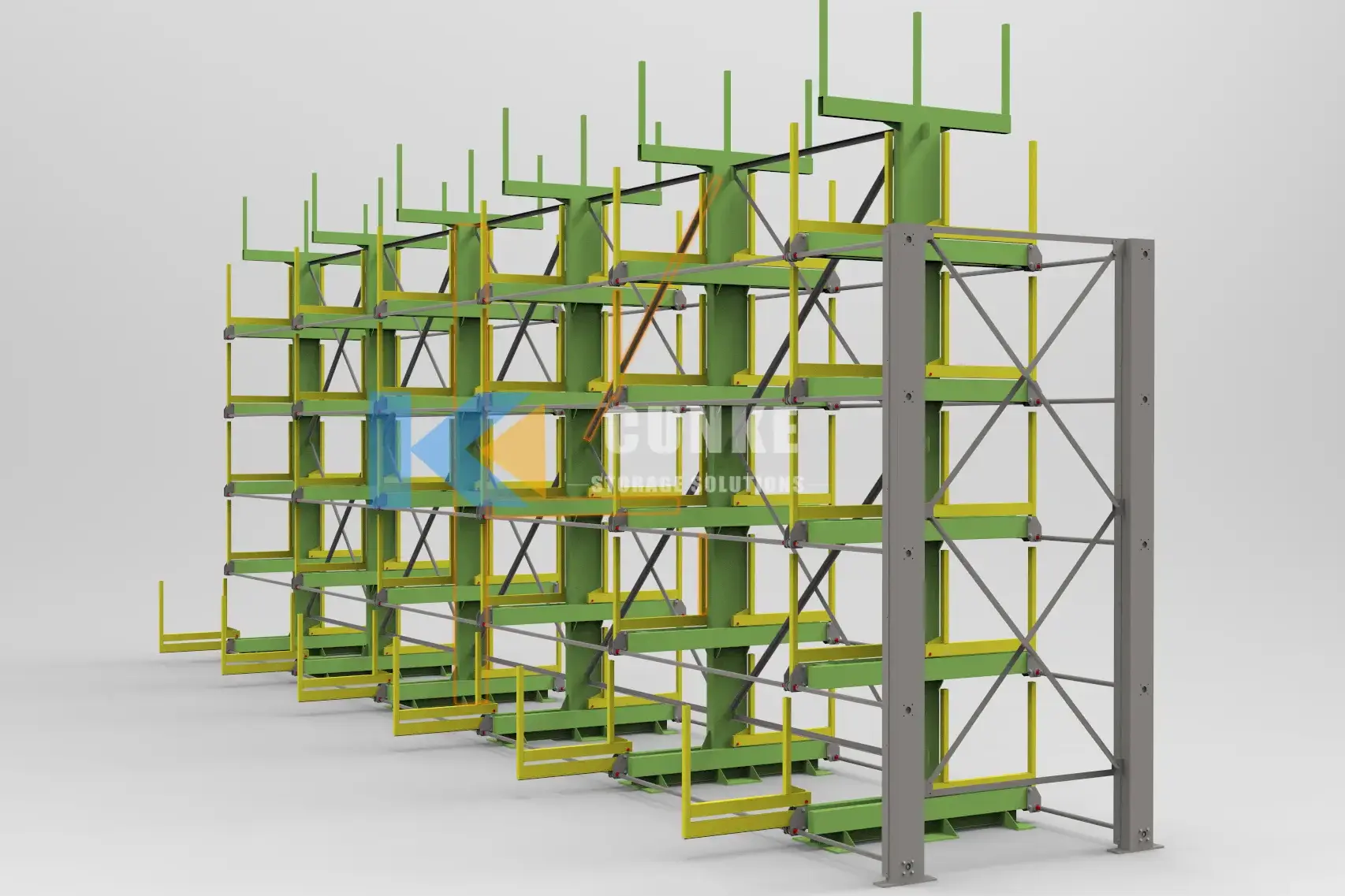

Our engineering team provides layout drawings and 3D designs before production to ensure the rack fits perfectly into your workshop.

This roll-out storage system is widely used in:

• Steel Service Centers
• Aluminum Processing Plants
• Metal Fabrication Workshops
• Tube Manufacturing Facilities
• CNC Machining Factories
• Laser Cutting Companies
• Industrial Workshops
• Construction Material Suppliers

With years of experience in industrial material storage equipment, CK designs and manufactures customized heavy-duty storage systems for customers worldwide.

Our advantages include:

• Professional engineering support
• Custom design service
• Factory-direct manufacturing
• Strict quality inspection
• Export packaging
• Installation guidance
• Global project experience
• Responsive technical support

• Roll-Out Cantilever Rack
• Roll-Out Profile Storage Rack
• Heavy Duty Bar Storage Rack
• Honeycomb Storage Rack
• Cassette Storage System
• Sheet Metal Storage Rack
• Vacuum Lifting System

Looking for an efficient way to store long pipes and profiles?

Contact CK Metal Storage today with your material length, bundle weight, crane type, and available workshop space. Our engineers will prepare a customized storage solution, including a layout drawing, 3D design, and quotation tailored to your facility.
