Product Overview

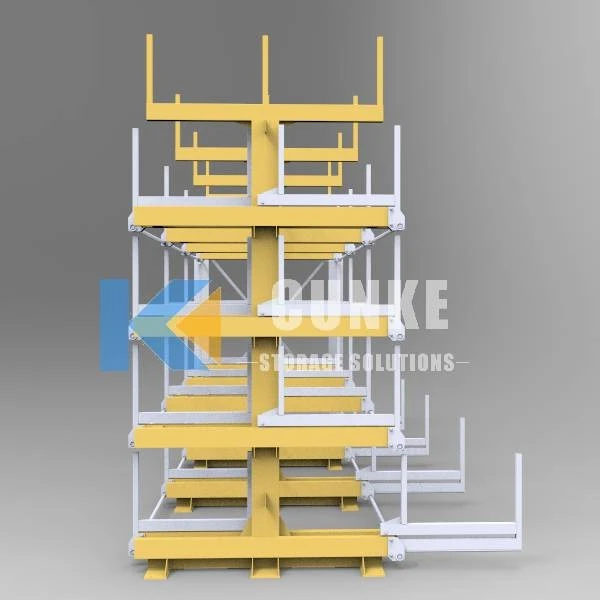

CK Roll-Out Cantilever Rack for Steel Distribution Warehouses is a heavy-duty industrial pull-out storage system exclusively engineered for large steel service centers, metal distribution yards and steel wholesale warehouses. Unlike standard general cantilever racks, this model is reinforced to handle frequent batch loading/unloading of mixed steel stock including round bars, square tubes, flat steel, angle iron, channel steel and alloy profiles with lengths up to 12m.
Full telescopic roll-out cantilever arms deliver complete front access to every layer of steel goods, eliminating blind spots for overhead cranes and forklifts. It solves core pain points of steel distributors: messy floor stacking, surface scratching, difficult stock counting, low space utilization and safety hazards from unstable steel piles. Available in manual crank and motorized electric operation, with hot-dip galvanized finish standard for outdoor steel yard deployment and epoxy coating for indoor warehouse use.
Key Specifications
| Structural Type | Single/Double-sided full roll-out cantilever frame |
| Applicable Material Length | 3m–12m fully customizable |
| Single Arm Load Capacity | 1–5 tons heavy-duty reinforced for steel bulk goods |
| Operation Mode | Manual hand crank / Motorized electric roll-out with control panel |
| Standard Surface Treatment | Hot-dip galvanizing (outdoor steel yard) / Epoxy powder coating (indoor warehouse) |
| Adjustable Layer Count | 2–8 configurable storage tiers |
| Main Frame Material | High-grade thickened hot-rolled structural steel |
| Installation Scene | Indoor steel warehouse, covered outdoor steel distribution yard, wall-aligned linear layout |
Why Choose This Rack
- Steel Warehouse Reinforced Design: Extra thick arms and columns specially strengthened for heavy, dense steel bulk materials, anti-deformation under long-term full load
- 100% Full Roll-Out Access: Telescopic arms slide fully outward, cranes and forklifts can pick any steel material without shifting other stock
- 50% Floor Space Saving: Vertical layered storage replaces chaotic ground stacking, greatly expanding steel storage volume within limited warehouse area
- Batch Inventory Management: Separate layers for different steel grades, sizes and specifications, fast stocktaking and order picking for steel distribution business
- All-Weather Outdoor Adaptation: Standard hot-dip galvanized treatment resists rain, rust and industrial dust for long-term outdoor steel yard use
- High Operation Efficiency: Motorized version cuts material handling time by over 70% for high-volume steel wholesale daily turnover
Key Components
Heavy-Duty Reinforced Vertical Column
Extra thick integral welded steel uprights, anti-tilting stable structure for heavy steel loads
Steel Stock Optimized Roll-Out Cantilever Arms
Widened, thickened arm surface to prevent steel pipes/bars from rolling and sliding
Industrial Wear-Resistant Sliding Rail Assembly
High load-bearing track system, smooth long-term frequent sliding without jamming
Manual Crank / Motor Drive Control System
Stable transmission, single-person easy operation for daily batch steel handling
Multi-Layer Safety Limit & Anti-Drop Lock
Prevent over-sliding and steel material falling during retrieval
Widened Anti-Overturn Base Frame
Reinforced base to balance uneven heavy steel stock weight distribution
Applications
Professional storage solution for steel distribution warehouses, metal service centers, steel wholesale yards, structural steel processing distribution hubs, pipe & profile trading companies, construction steel material storage facilities.
Perfect for centralized classified storage of carbon steel, stainless steel, aluminum alloy long stock: round steel bars, square tubes, rectangular pipes, flat strips, angle iron, channel steel and steel offcuts.
Technical Highlights
- Targeted structural reinforcement for frequent heavy batch loading of steel distribution industry
- Dual indoor/outdoor anti-corrosion surface treatment matching steel warehouse operation environments
- Modular linear splicing design, extendable along long warehouse walls to match large-scale steel storage yards
- Compatible with overhead traveling cranes and all standard industrial forklifts for flexible loading modes
- Customizable arm spacing, layer height and load rating to fit mixed steel specification inventory
- Low-friction sliding system with long service life, reducing maintenance frequency for high-traffic steel warehouses
Why CK Storage Solutions?
CK Storage Solutions (www.ckmetalstorage.com) is a professional manufacturer of customized heavy-duty roll-out cantilever racks with rich project experience serving global steel distribution warehouses. We conduct structural stress testing for heavy steel load scenarios to guarantee long-term stable operation. Our one-stop service covers free CAD warehouse layout design, personalized dimension & load customization, export packaging and full installation guidance. We deliver reliable high-density storage solutions to help steel distributors boost warehouse capacity, speed up order picking and reduce operational safety risks.
FAQ
Get a Quote
Please provide your maximum steel material length, single arm required load, total warehouse storage area, installation environment (indoor/outdoor) and preferred operation mode (manual/motorized). Our engineering team will create custom CAD layout, detailed specification sheet and competitive factory quotation within 24 hours.
