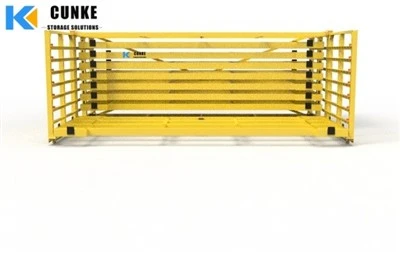

Product Introduction
Metal fabrication workshops, laser cutting factories and metal processing plants often face troubles including sheet metal surface scratches, material deformation, low space utilization and cumbersome material access caused by traditional floor stacking. Our Roll-Out Sheet Metal Rack is tailor-made to solve these pain points.
Adopting a full roll-out drawer structure, each layer can be pulled out independently. Operators can directly use forklifts, overhead cranes or vacuum lifters to load and unload various metal sheets without moving other stacked materials. The separated layered storage effectively avoids friction and collision between sheets, fully protecting the surface quality of metal materials. Built with heavy-duty steel and high-precision industrial rolling rails, the rack runs stably under long-term high-load operation. It standardizes workshop material management, optimizes walking passages and greatly improves the overall operational efficiency of metal fabrication workshops.
Product Parameters
| Item | Specification |
| Main Material | High-strength Q235 Heavy-duty Steel |
| Structure Type | Full Roll-out Drawer Structure |
| Single Layer Load | Max 5000kg per layer |
| Applicable Materials | Aluminum sheets, stainless steel sheets, carbon steel plates, galvanized sheets and other metal sheets |
| Standard Sheet Size | 2440×1220mm / 3000×1500mm; Custom sizes supported |
| Number of Layers | 2–10 layers (optional) |
| Layer Spacing | 110mm / 150mm; Custom spacing available |
| Operation Mode | Manual mechanical type / Motorized electric type |
| Surface Treatment | Anti-rust powder coating |
| Standard Color | Orange, Blue; Custom colors acceptable |
| Custom Service | OEM & ODM supported |
Product Features
1. Complete Material Protection
Independent layered storage isolates metal sheets, effectively reducing scratches, dents and deformation during storage and handling in order to lower material loss rate.
2. Ultra-high Load-bearing Performance
Reinforced steel frame structure, single layer bears up to 5000kg, suitable for storing thick and heavy metal plates of various specifications.
3. Smooth Full Extension Design
100% full roll-out drawers with optimized rolling rail system. The crank-assisted design makes pulling and pushing labor-saving and smooth, no jamming under full load.
4. One-person Efficient Operation
After the drawer is fully extended, all sheets are within reach. Cooperate with common handling equipment to realize single-person loading and unloading, which saves labor costs.
5. Dual Operation Options
Manual type is cost-effective for conventional workshops; motorized type is labor-saving and efficient. They are ideal for high-frequency use and automated production lines.
6. High Space Utilization
Make full use of vertical space, reduce floor occupation by nearly 80% compared with traditional stacking and expand workshop operating area.
Applications
- Metal fabrication workshops & Metal processing factories
- Laser cutting, water jet cutting & punching workshops
- Metal sheet professional warehouses
- Automotive parts processing workshops
- Aerospace metal material processing industry
- Hardware manufacturing & Sheet metal stamping factories
FAQ
Q1: What kinds of metal sheets can this rack store?
A1: It is mainly designed for various metal sheets, which includes aluminum sheets, stainless steel sheets, carbon steel plates, galvanized sheets, cold-rolled sheets and hot-rolled plates. The separated storage structure can protect all flat metal materials well.
Q2: Can I customize the rack according to my workshop and sheet size?
A2: Yes. We provide all-round customized services. You can adjust the overall size, number of layers, layer spacing, load capacity and appearance color according to sheet specifications, workshop area and production layout. Non-standard products are fully supported.
Q3: What is the difference between manual and motorized types? How to choose?
A3: The manual type relies on crank drive, with low cost and simple maintenance, which is recommended for workshops with ordinary workload and low frequency of use. The motorized type is driven by motor, with automatic push-pull function, more labor-saving and faster speed, suitable for workshops with large material volume, frequent access and automated production matching.
Q4: Do you support OEM and ODM services?
A4: Definitely. We can customize brand logos, exclusive colors, special structural designs and overall storage solutions according to customer requirements to meet the needs of different markets and projects.
Q5: Is the rolling rail easy to damage after long-term use?
A5: The rolling rail adopts industrial thickened design and anti-rust treatment. After strict load and wear tests, it can keep smooth operation for a long time under normal use, with low failure rate and long service life.
