Product Introduction

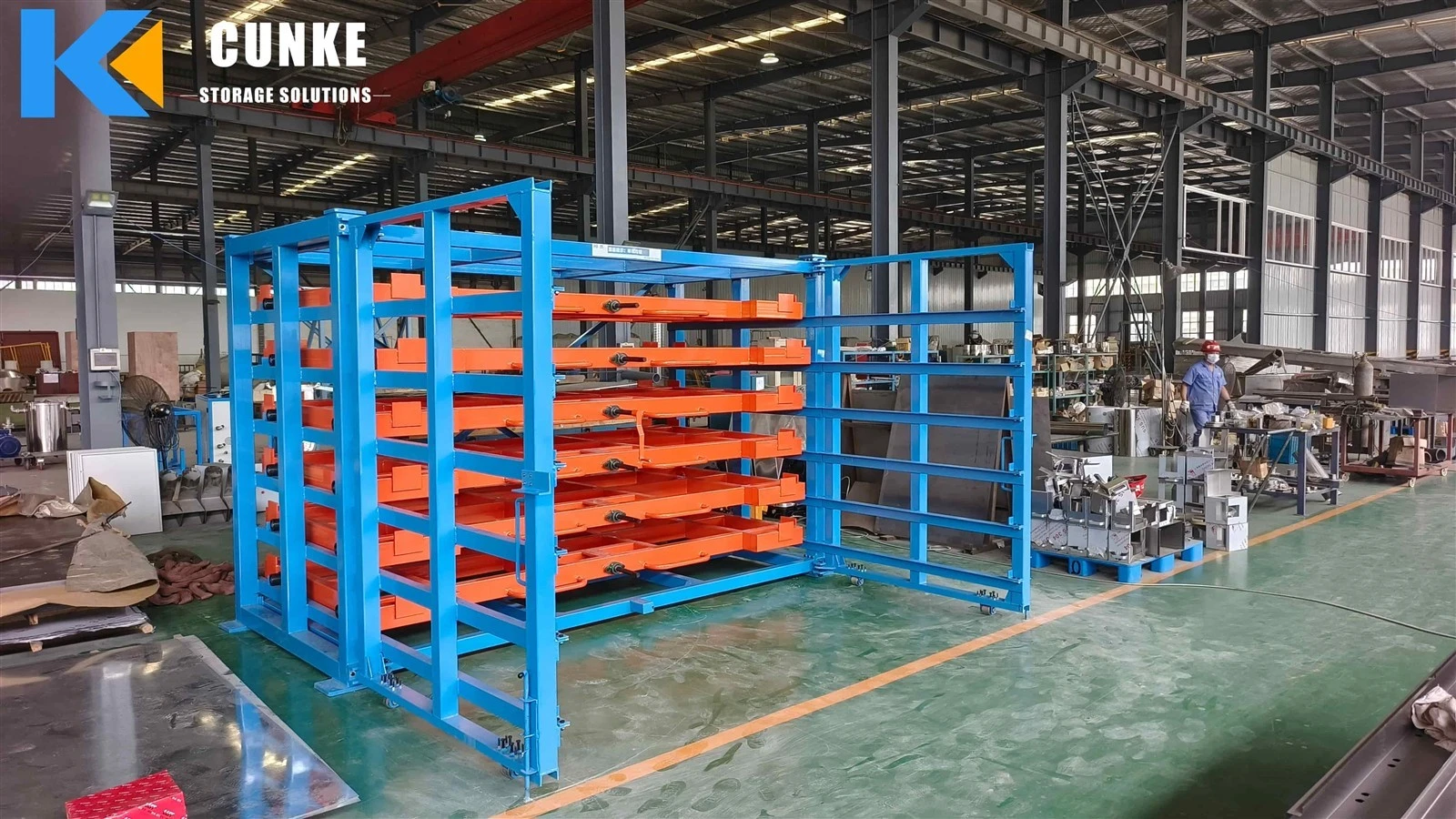

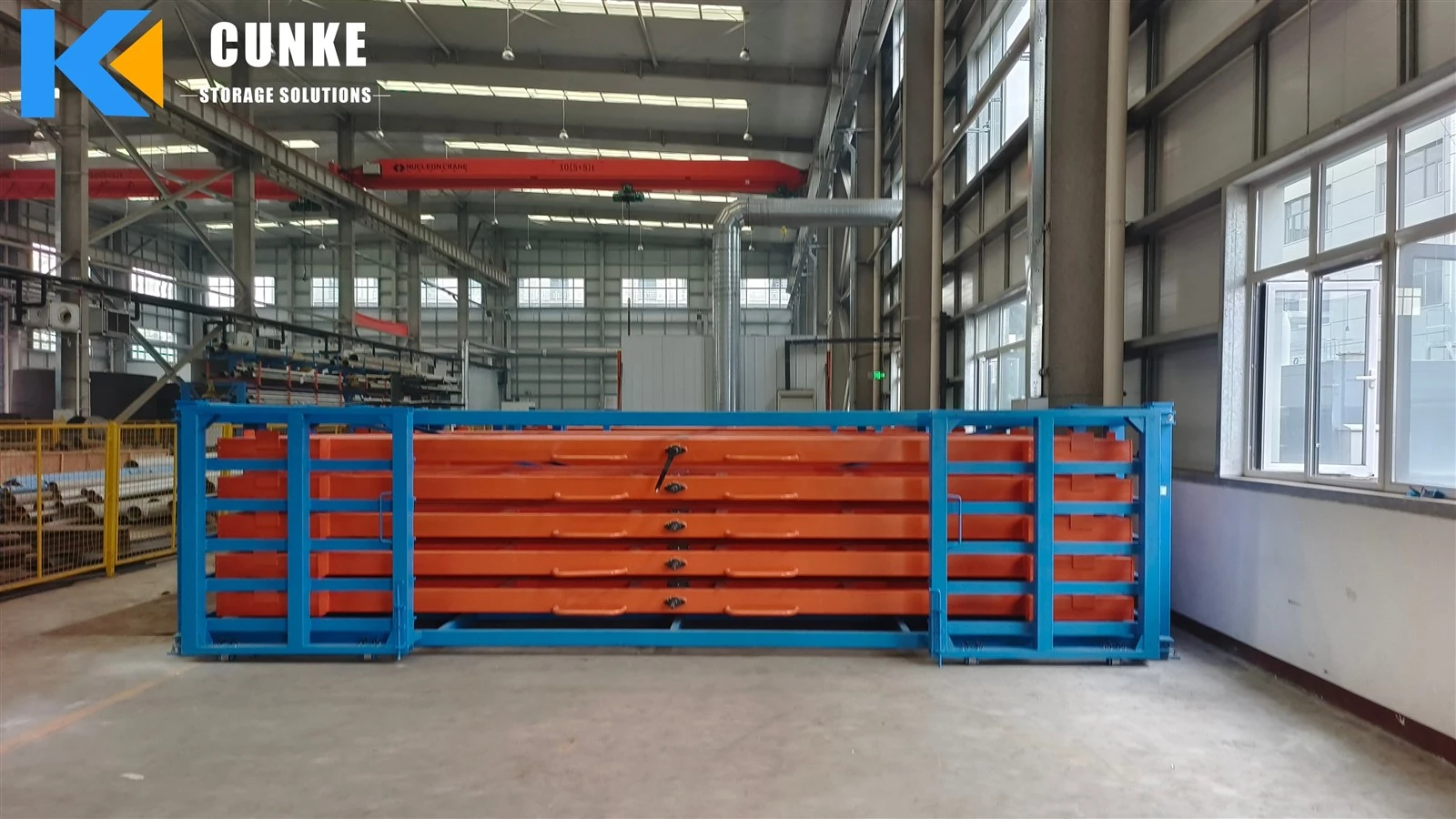

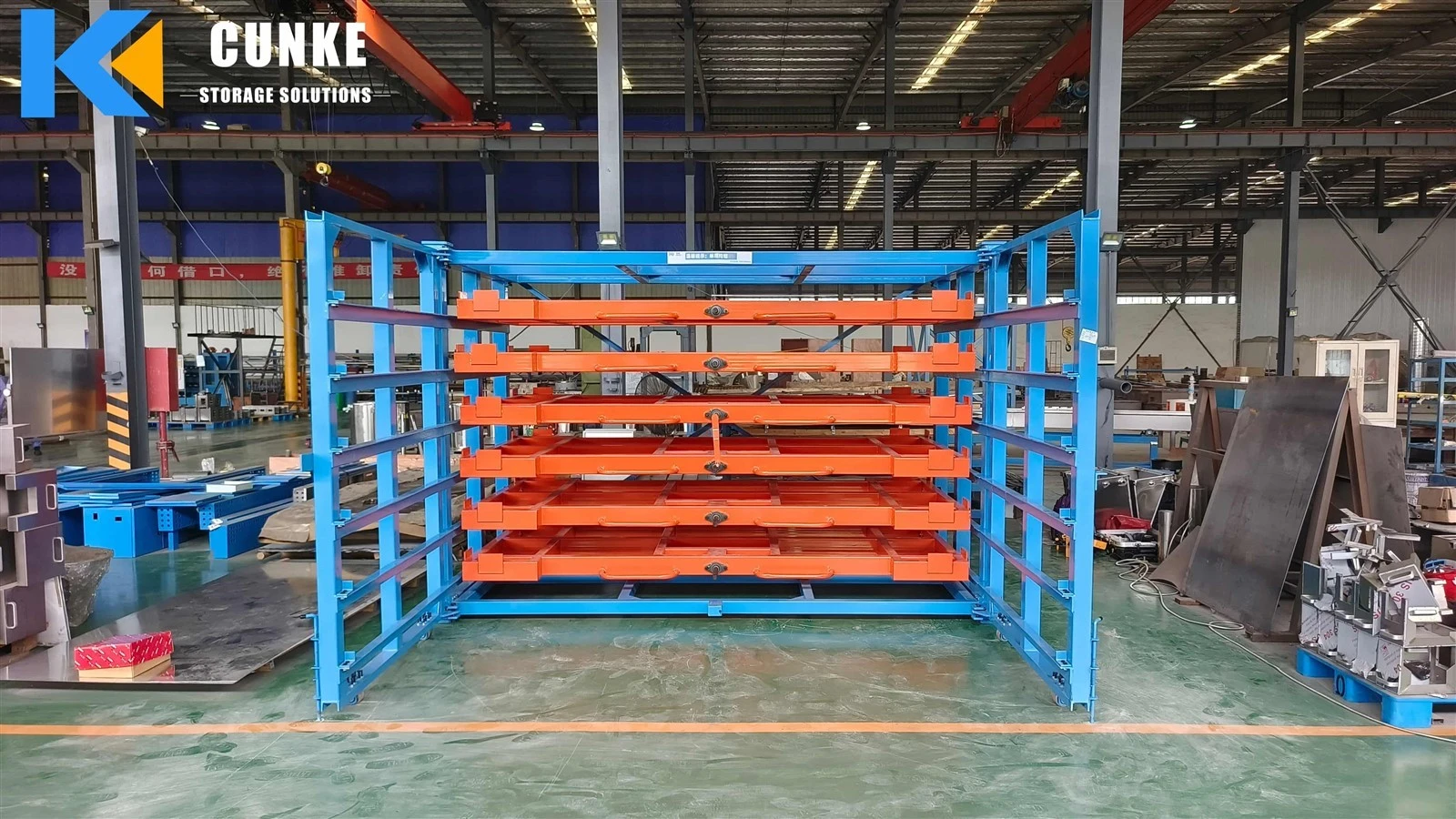

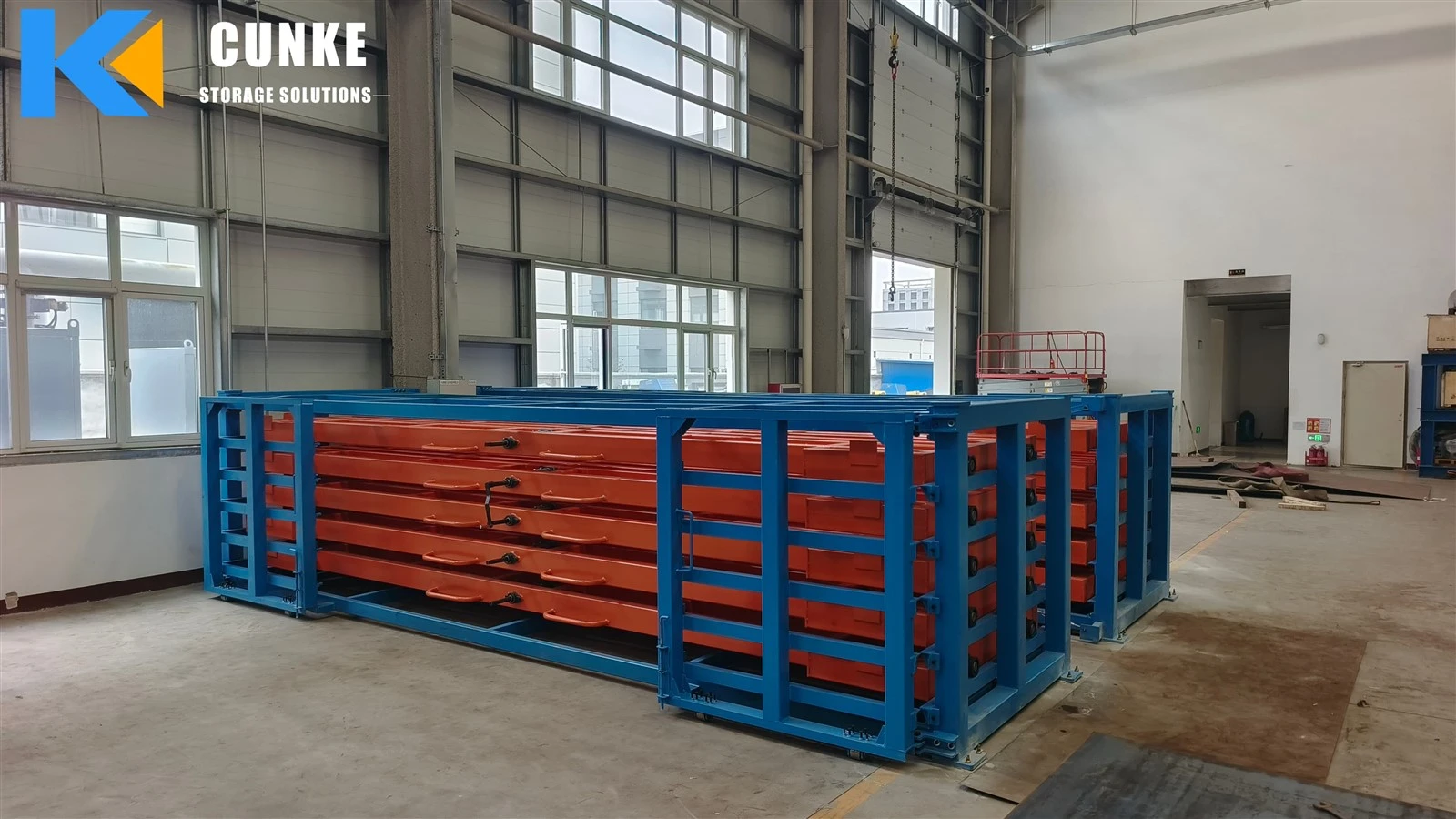

The Roll-Out Sheet Metal Rack is an advanced storage solution engineered specifically for laser-cutting shops, sheet-metal fabrication facilities, and manufacturing plants that handle large-format metal sheets. Featuring fully extendable heavy-duty drawers and a mechanical crank-assisted system, it enables safe, efficient, and ergonomic access to sheet materials while maximizing valuable floor space.
Designed for use alongside laser-cutting machines, press brakes, and overhead crane systems, this storage rack streamlines material flow, reduces handling time, and improves workplace safety.
Why Laser Cutting Shops Need Roll-Out Sheet Metal Storage
As production volumes increase, storing and accessing raw sheet materials efficiently becomes critical. Traditional floor stacking creates safety hazards, consumes valuable workspace, and slows production.
The Roll-Out Sheet Metal Rack solves these challenges by providing:
- Organized storage for multiple sheet types and thicknesses
- Direct access to every material level
- Reduced forklift traffic and handling damage
- Faster material retrieval for laser operators
- Better inventory visibility and management
Key Features
Heavy-Duty Roll-Out Drawer System

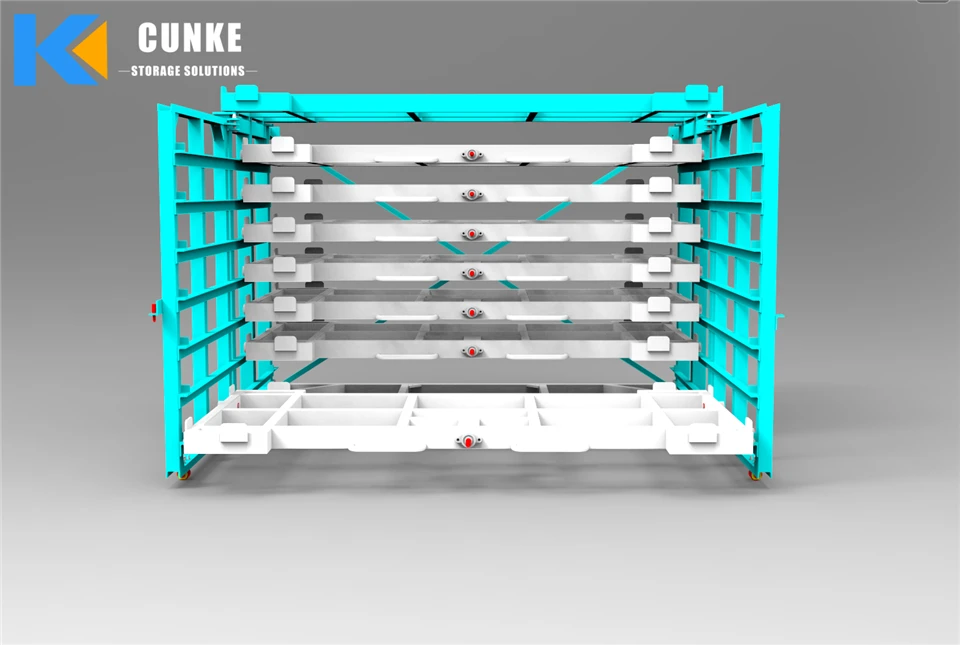

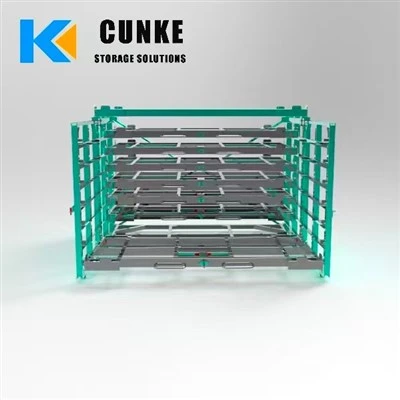

Each drawer is equipped with a crank-assisted roll-out mechanism that allows operators to smoothly extend loaded trays for safe material access. Heavy sheets can be loaded or unloaded directly using an overhead crane or vacuum lifting system.
Up to 5,000 kg Load Capacity per Level
Built with reinforced structural steel, each storage level can safely support up to 5,000 kg of sheet material, making it suitable for steel, stainless steel, aluminum, copper, and other heavy metal sheets.
Maximum Space Utilization
By storing sheet metal vertically within multiple drawer levels, the rack significantly reduces floor space requirements while increasing storage density.
Improved Material Protection
Separate drawer levels prevent material contact, reducing scratches, dents, and surface damage while maintaining material quality.
Safer Material Handling
The ergonomic roll-out design minimizes manual lifting and reduces operator exposure to hazardous handling practices.
Fully Customizable Design
Rack dimensions, number of levels, load capacities, and drawer spacing can be customized according to specific production requirements.
Technical Specifications
Specification | Value |
Rack Type | Roll-Out Sheet Metal Rack |
Drawer Operation | Mechanical Crank Assisted |
Load Capacity per Level | Up to 5,000 kg |
Usable Length per Level | Up to 6,200 mm |
Usable Depth per Level | Up to 2,500 mm |
Usable Height per Level | From 70 mm |
Number of Levels | Typically 5–8 Levels |
Material | Heavy-Duty Structural Steel |
Surface Finish | Industrial Powder Coating |
Custom Sizes Available | Yes |
Benefits for Laser Cutting Facilities
Increase Throughput
Quick access to raw materials keeps laser cutting machines running with minimal downtime.
Reduce Material Handling Time
Operators can retrieve specific sheet sizes and grades without moving surrounding inventory.
Create More Floor Space
Replace floor-stacked sheets with a compact, organized storage system that frees valuable production space.
Improve Safety Standards
Reduce forklift movements, eliminate unstable material stacks, and create a safer working environment.
Enhance Inventory Control
Clearly organized storage locations help operators track material grades, dimensions, and stock levels more efficiently.
Compatible Materials
The Roll-Out Sheet Metal Rack is suitable for storing:
- Carbon Steel Sheets
- Stainless Steel Sheets
- Aluminum Sheets
- Copper Sheets
- Brass Sheets
- Galvanized Steel Sheets
- High-Strength Alloy Plates
Typical Applications
Laser Cutting Workshops
Store raw sheets adjacent to laser machines for fast and efficient material loading.
Sheet Metal Fabrication Plants
Organize various material grades and thicknesses while reducing handling effort.
Metal Service Centers
Improve inventory management and maximize warehouse storage density.
Advantages Over Traditional Floor Storage
Traditional Storage | Roll-Out Sheet Metal Rack |
Occupies large floor area | High-density storage |
Difficult material access | Direct drawer access |
Higher risk of sheet damage | Protected individual levels |
Increased forklift traffic | Reduced material handling |
Lower workplace safety | Improved operator safety |
Slower material retrieval | Faster production workflow |
Why Choose Our Roll-Out Sheet Metal Rack?
Our storage systems are engineered to improve efficiency, safety, and productivity in demanding industrial environments. With robust steel construction, high load capacity, and customizable configurations, the Roll-Out Sheet Metal Rack provides a long-term solution for sheet metal storage and material handling.
Key Advantages
✓ Up to 5,000 kg capacity per drawer
✓ Smooth crank-assisted roll-out operation
✓ Compatible with overhead cranes and vacuum lifters
✓ Maximizes workshop floor space
✓ Protects valuable sheet materials
✓ Reduces handling time and labor costs
✓ Custom-built to your sheet sizes and workflow
