Product Overview

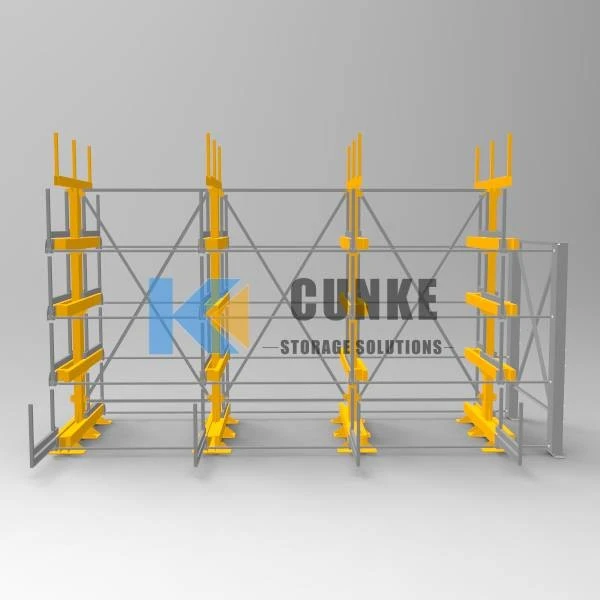

CK Pipe Rack, also known as fixed cantilever pipe storage rack, is a standard long-material storage system independently developed by CK Metal Storage, specially designed for storing steel pipes, copper tubes, aluminum profiles, solid bars, square tubes and other elongated raw materials. Adopting cantilever structure, overhead cranes and forklifts can directly load/unload long materials, widely used in metal processing factories, steel distribution warehouses, aluminum profile workshops and construction material yards.
Technical Parameters
|
English Parameter |
Standard Data |
|
Raw Material |
Q235B Carbon Steel |
|
Single Arm Load Capacity |
750kg – 3000kg |
|
Adjustable Layer Height |
75mm per pitch |
|
Usable Storage Height |
Max 7000mm |
|
Applicable Material Length |
3m / 6m / 9m / 12m Customizable |
|
Storage Layers |
3–8 Layers Customizable |
|
Surface Treatment |
Powder Coating / Hot-dip Galvanized |
|
Certification |
ISO9001, CE, SGS |
|
Warranty |
5 Years |
Why Choose Our Pipe Rack
Maximize vertical storage space, freeing up over 30% floor area compared with ground stacking.
Separated layered storage prevents pipes from scratching, deforming or rusting due to direct stacking.
Unobstructed front structure allows direct hoisting without moving stacked materials, improving handling efficiency.
Modular bolt assembly supports flexible disassembly, rearrangement and warehouse expansion.
Cost-effective fixed structure with low manufacturing and installation costs for regular long-material storage.
Compatible with overhead cranes, forklifts and manual chain hoists for diverse loading tools.
Key Components
1. Upright Frames:
Thickened cold-rolled steel uprights with 75mm adjustable holes for flexible layer height adjustment.
2. Heavy-duty Cantilever Arms:
Integrally bent bearing arms with high anti-bending performance under full load.
3. Integrated Welded Base:
Matched with cross bracing to strengthen overall stability and anti-tilting performance.
4. Fastening Bolts & Nuts:
High-strength anti-loose bolts for stable modular connection.
5. Optional Accessories:
Anti-fall safety net, separating dividers, rubber protective pads, ground fixing expansion bolts.
Applications

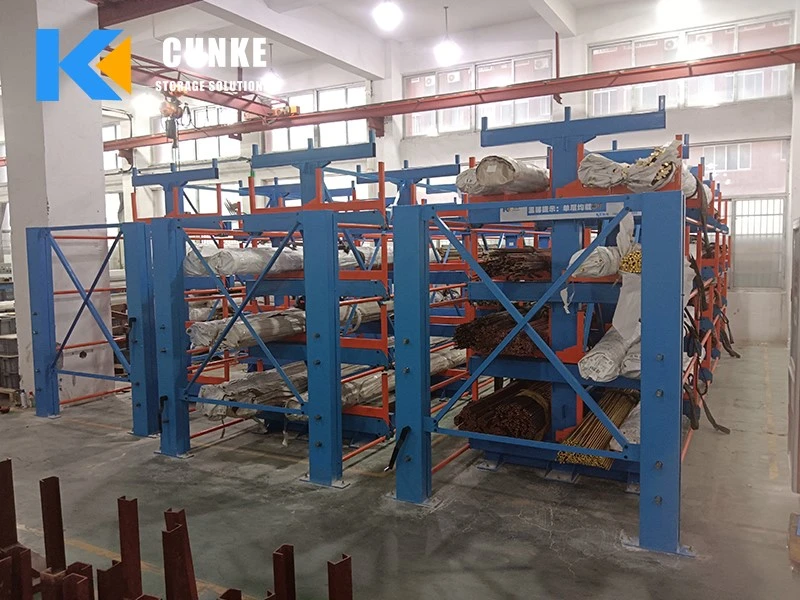

Steel pipe trading warehouses, aluminum extrusion factories, construction steel yards, mechanical processing plants, stainless steel & copper tube storage workshops, hardware raw material storage rooms.
Technical Highlights
- Standard 75mm pitch hole design enables stepless height adjustment to match different pipe sizes.
- Double-sided rack structure makes full use of central warehouse aisles for double-side material storage.
- Hot-dip galvanized customization available for outdoor damp and corrosive storage yards.
- Integrated welding base eliminates loose deformation risks under long-term heavy load.
- Complete safety certification system meets international industrial storage standards.
Why CK Storage Solutions?
- Independent factory production with full-process quality inspection from raw material to finished products.
- Custom size, load capacity and surface treatment solutions based on customer warehouse layout.
- Professional engineering team provides free warehouse layout drawing and load calculation.
- Complete after-sales system: 5-year warranty, global installation guidance and technical support.
- Export products with CE, ISO9001 and SGS certificates to meet global market
